MW LPC-150-2100 :: Power supply, 151,2 W / 36 - 72 V / 2100 mA
1

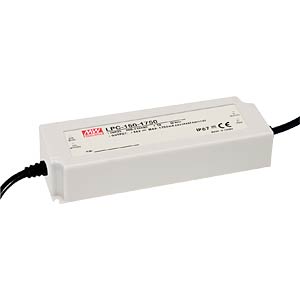

Product picture : Illustration similar
Item-No.: MW LPC-150-2100
€37,01
MW LPC-150-2100
- General
- Technology
- Constant current
- Design
- For LED and lighting applications
- Model
- Switching power supply
- Input
- 180 - 305 V AC / 254 - 431 V DC
- Specials
- Short circuit protected
- Yes
- Packaging
- Packaging
- Individual packaging
- Power supply
- Power supply, on device
- Open ends
- Output voltage, connection
- Open ends
- Output current: 2100 mA fest
- Output voltage: 36 - 72 V DC
- Power: 151,2 W
- Ripple noise: 1 Vpp
data of the LPC-150 series:
- Universal input
- Plastic enclosure IP67
- Overload protection, current limiting, auto recovery
- Protections: short circuit/over load/over voltage
- Protection Class 2
- Fixed output current
- Input Voltage: 180 - 305 V AC (47 - 63 Hz) / 254 - 431 V DC
- Input Inrush Current, Max.: 40 A
- Withstand Voltage (I/P-O/P): 3000 V AC
- Operating Temperature: -25...+50 °C
- Weight: 740 g
Manufacturer : MEANWELL
Factory number : LPC-150-2100
Package weight : 0.799 kg
RoHS : conform
